When analyzing network traffic easiest way to grasp “big picture” is to visualize the data. One of the easiest ways to draw network graphs is to use GraphViz package, which is open source graph visualization software.
Dot language #
Dot language is used to describe nodes and edges which again we’ll get from analyzed pcap files.
I’m not going to go too much detail about dot language, you should check out their website for documentation and tutorials. There are also good tutorials which are available on youtube and various blogs.
If you want to play with dot, I can highly recommend Dot plugin for Visual Studio Code. It gives you realtime view of your code and makes creating with dot a real pleasure.
Log to graph #
Let’s look an example log-file which was created with tshark.
$ tshark -r example.pcap -T fields -E separator=, -E quote=d -e ip.src -e ip.dst | sort |
uniq > tcp.log
$ head tcp.log
"130.236.100.79","192.168.0.2"
"192.168.0.1","192.168.0.51"
"192.168.0.1","239.255.255.250"
"192.168.0.2","130.236.100.79"
"192.168.0.2","188.126.88.9"
"192.168.0.2","194.71.144.71"
"192.168.0.2","213.155.151.149"
"192.168.0.2","213.155.151.150"
"192.168.0.2","213.155.151.151"
"192.168.0.2","213.155.151.155"

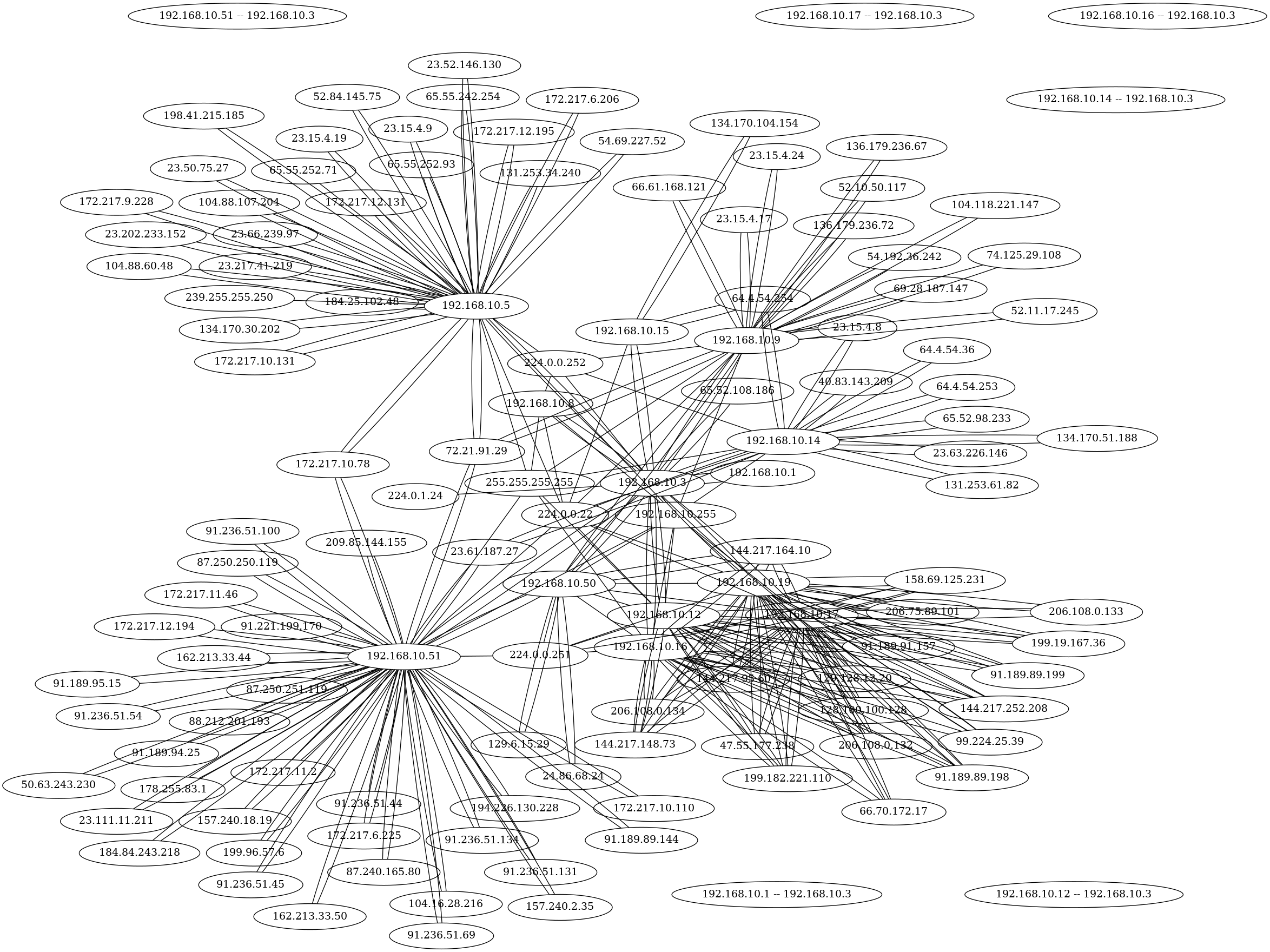

This gives us nice an easy way to create a graph with dot:
$ echo "graph {" ; awk -F "," {'print $1 " -- " $2 ";"'} tcp.log ; echo "}"
